CHANNEL TUBE STRIP HEATERS & FINNED CHANNEL TUBE HEATERS
CHANNEL TUBE STRIP HEATERS
CONSTRUCTION

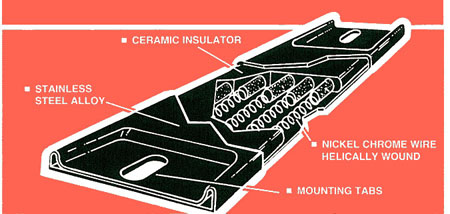

Nickel chrome resistance wire is wound in a helix and strung through ceramic cores. Voids are filled with high purity magnesium oxide to provide even heat transfer while allowing operating temperatures to reach 1200°F on the stainless steel sheath. Delta channel tube heaters are supplied with either terminal posts or high temperature lead wires. The ends can be heli-arc welded closed, or mounting tabs can be pressed into the heater ends to provide mounting capability.
APPLICATIONS
Channel tube heaters are frequently used on hot plates, molds, dies, platens and a host of other applications.
FEATURES
- STAINLESS STEEL 1200F OPERATION
- MOLDS & DIES
- OVENS
- MOUNTING TABS OR WELDED CLOSED ENDS
- AIR DUCTS
- PREHEATING
- FOOD SERVICE
- SECURED TERMINAL POSTS
- TANKS & VESSELS
- NICKEL LEADS
- HIGH PURITY MgO FILLED
FINNED CHANNEL TUBE HEATERS
CONSTRUCTION AND APPLICATION
Nickel plated cooling are attached to the stainless steel sheath to provide rapid heat transfer to the surrounding air. Air passing over the 1200"F sheath is heated to allow ovens, ducts environmental chambers and test stands to operate over long periods of time with a minimum of care and expense.
FEATURES
- STAINLESS STEEL SHEATH
- NICKEL PLATED STEEL FINS
- SECURED TERMINAL POST
- OPERATION AT 1200°F SHEATH
- AIR HEATING TO 800°F
- MADE TO CUSTOMERS SPECIFICATIONS
- DUCT HEATING
- SPACE HEATING
- DRYING EQUIPMENT
- OVENS
- BAKE-OUT OVENS
- HUMIDITY CONTROL
